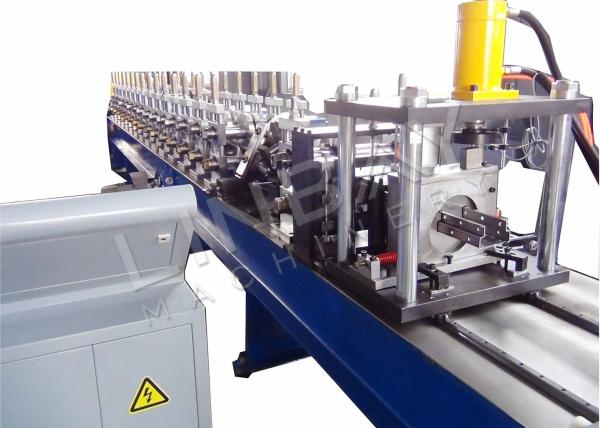

Automatic Size Interchangeable Racking Column Roll Forming Machine Multiple Rack Sizes
Beam shelving(Warehouse shelf roll forming machine) is widely used in the warehousing industry because of its high load capacity, high picking efficiency, ease of mechanical operation, low cost and strong versatility to accommodate different types of goods storage.
Beam shelving(Warehouse shelf rollformer) is heavy duty and has a large load capacity. The unit load of heavy duty beam shelving can be 1000-3000 kg. The layer load of beam shelving can be customised according to customer requirements, by adjusting the size of the columns(Upright rack roll forming machine) and beams(box beam roll forming machine or step beam roll former) and by using different materials.
The shelves(shelf system roll forming machine) are assembled from columns(upright rack roll forming machine), beams(step beam roll forming machine or box beam roll forming machine), cross braces(bracing roll forming machine), diagonal braces(diagonal bracing rollformer), bolts and other components. The columns and crossbeams are joined together to form the shelves. Safety pins are used between the crossbeams and the columns to ensure that the crossbeams do not fall off under external impact. Due to this combination of structural features, the shelves are very convenient in terms of transport, handling, installation and dismantling.
Flow chart:
Hydraulic decoiler--leveler--Servo feeder--Punch press--Recoiler
Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic flying cut--Out table
| Automatic Size Interchangeable Racking Column Roll Forming Machine Multiple Rack Sizes |
| Item | Specification |
| Machinable material | Type | Galvanized steel |
| | Thickness | 2mm |
| Perforation line: |
| Working speed | 0-10m/min | |
| Component 1: | Decoiler | Hydraulic type 5.5kw+3kw |
| Component 2: | Leveler | Electric 5.5kw |
| Component 3: | Punch press machine | JH21-80 |
| Component 4: | Recoiler | Hydrauic type 7.5kw+5.5kw |
| Roll forming line: |
| Component 1: | Decoiler | Hydraulic type 5.5kw+3kw |
| Component 2: | Roll forming machine | Cast iron stands structure Gearbox drive 15kw |
| Component 3: | Flying shear | Hydraulic motor 56.5kw Servo motor 3kw |
| Component 6: | Out table*2 | 2*2m |
| Component 4: | Control panel*2 Voltage | SIEMENS PLC 380V 50Hz 3ph or according to your requirements |
| Component 5: | Hydraulic station*3 | 3kw+11kw*5.5kw |
In this line, the customer has split the entire production step into a punching line and a forming line in order to achieve fast speed, so that the forming speed is not affected by the punching and can reach 15 m/min. One line is dedicated to punching and after punching the material is recycled into rolls and then the whole roll is put into the uncoiler of the forming line and then rolled.
In addition, the forming machine is automatically adjustable in size by means of 3 small motors, and the width and height can be automatically positioned to that size by setting it on the touch screen, making it very easy to operate.
Pictures of components:
Upright rack roll forming machine
Cross bar roll forming machine
Box beam roll forming machine
